Product Change NoticesGeneral Specifications

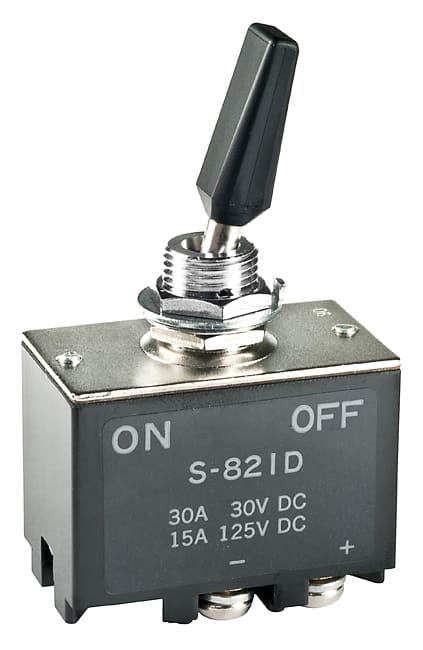

Part No.
S821D
Description
High Capacity Standard Size Toggles
Name
Toggle
Series
S
Poles
DPST
Circuits
On-Off
Current Rating
30A (DC)
Rating (DC)
30V
Actuator Type
Flatted
actuator length
27.00mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Screw Terminal
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
Rating
30
