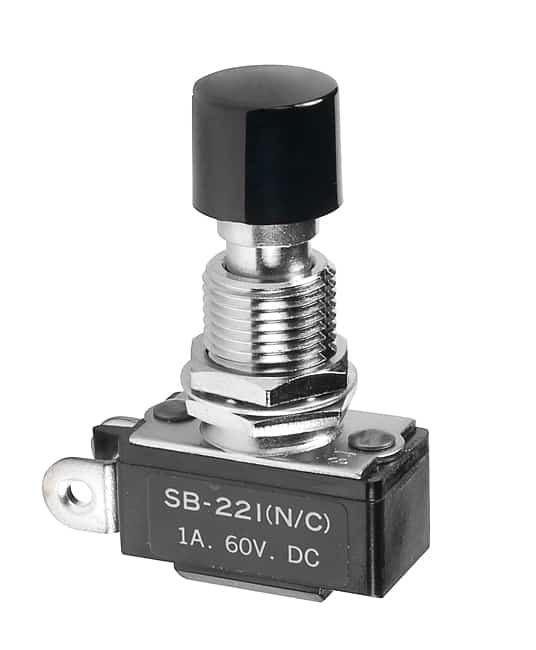

SB221NC

Low/Medium Capacity Pushbutton

SB Series
Low/Medium Capacity Pushbutton

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
SB221NC
Description
Low/Medium Capacity Pushbutton
Name
Pushbutton
Series
SB
Poles
SPST-NC
Circuits
On-Mom
Current Rating
3A (AC)
Rating (AC)
125V
Actuator Type
Round, Button
Actuator Cap Color
Black
Mounting Type
Panel Mount, Rear
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
Rating
3
Illumination
Non-Illuminated
