SB221TNC

Low/Medium Capacity Pushbutton

SB Series
Low/Medium Capacity Pushbutton

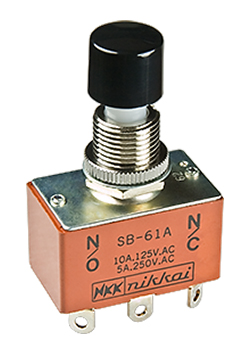

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
SB221TNC
Description
Low/Medium Capacity Pushbutton
Name
Pushbutton
Series
SB
Poles
SPST-NC
Circuits
On-Mom
Current Rating
3A (AC)
Rating (AC)
125V
Actuator Type
Round, Button
Actuator Cap Color
Black
Mounting Type
Panel Mount, Rear
Termination Style
Screw Terminal
panel cutout dimensions
Circular - 12.50mm Dia
Rating
3
Illumination
Non-Illuminated
