Not recommended for new designs.
3D CAD Model
Download Specifications
Custom Assembly
Check Inventory
Sample Request Form
Environmental Compliance
Product Change NoticesGeneral Specifications

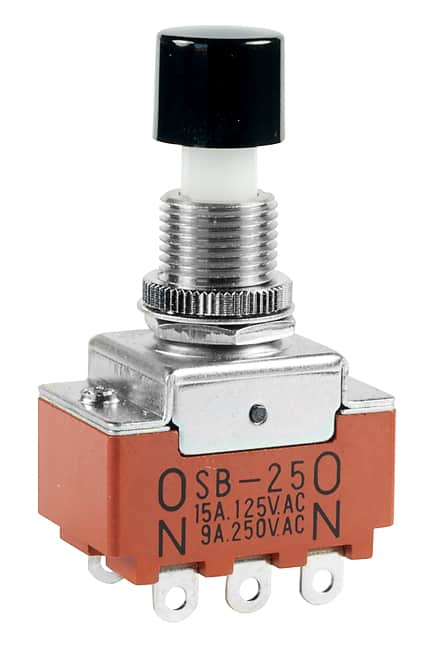

Part No.
SB25
Description
Low/Medium Capacity Pushbutton
Name
Pushbutton
Series
SB
Poles
DPDT
Circuits
On-On
Current Rating
15A (AC)
Rating (AC)
125V
Actuator Type
Round, Button
Actuator Cap Color
Black
Mounting Type
Panel Mount, Rear
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
Rating
15
Illumination
Non-Illuminated
