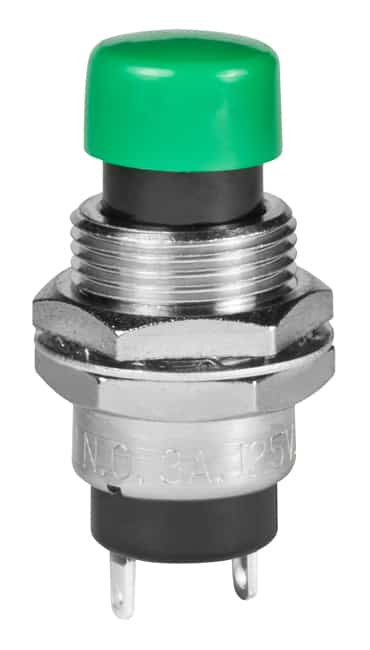

SB4011NOH-2F

3 AMP Momentary Pushbuttons

SB40 Series
3 AMP Momentary Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
SB4011NOH-2F
Description
3 AMP Momentary Pushbuttons
Name
Pushbutton
Series
SB40
Poles
SPST-NO
Circuits
Off-Mom
Current Rating
3A (AC), 2A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Round, Button
Actuator Cap Color
Green
Mounting Type
Panel Mount, Rear
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular - 12.50mm Dia
Rating
3
Illumination
Non-Illuminated
