Product Change NoticesGeneral Specifications
Part No.

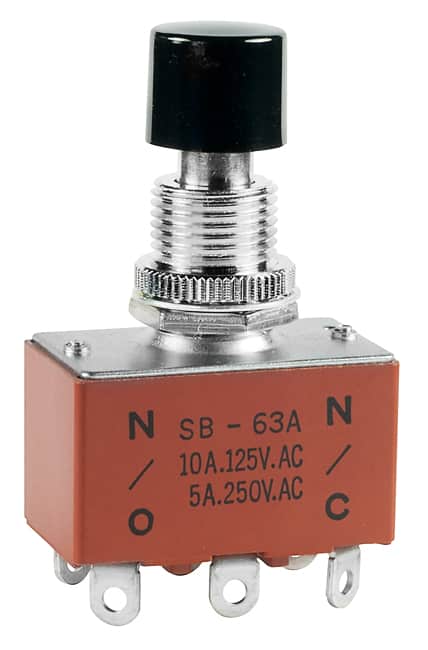

SB63A
Description
Low/Medium Capacity Pushbutton
Name
Pushbutton
Series
SB
Poles
DPDT
Circuits
On-Mom
Current Rating
10A (AC)
Rating (AC)
125V
Actuator Type
Round, Button
Actuator Cap Color
Black
Mounting Type
Panel Mount, Rear
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
Rating
10
Illumination
Non-Illuminated
