General Specifications
Part No.

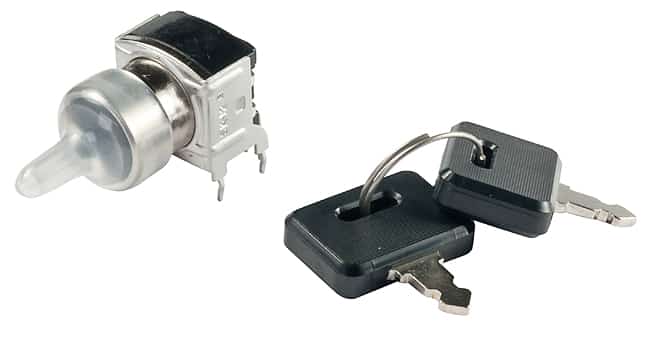

SK12BG30
Description
Process Sealed Keylocks
Name
KEYLOCK
Series
SK
Poles
SPDT
no positions
2
Circuits
On-On
contact timing
Non-Shorting (BBM)
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Flat Key
key removable positions
1 only
angle throw
90°
contact material
Beryllium Copper
contact finish
Gold
Mounting Type
Through Hole, Right Angle
Termination Style
PC Pin
Features
Process Sealed
Rating
0.4
