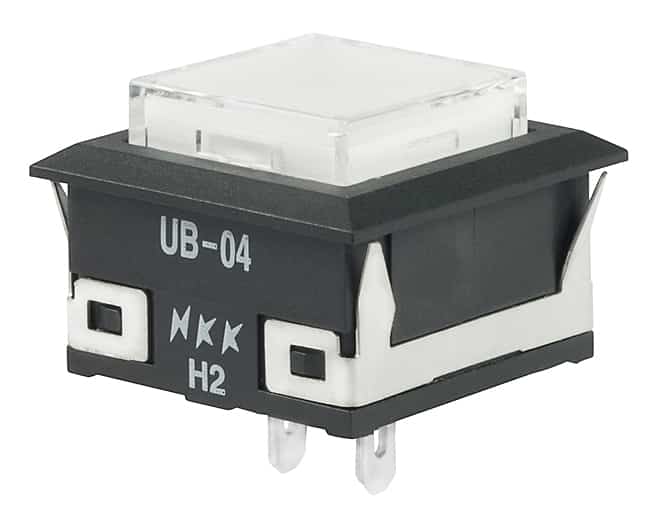

UB04KW016G-JB

Indicator

UB Series
Indicator

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
UB04KW016G-JB
Description
Indicator
Series
UB
Type
LED
Lamp Color
Blue
lens color
White
lens transparency
Diffused
Voltage Rating
3.8V
Current
25mA
Lens Style Size
Square with Flat Top, 12.00mm
Mounting Type
Quick Connect - 0.110 (2.8mm)
panel cutout dimensions
0.70" x 0.70" (17.78mm x 17.78mm)
ratings
Vf (Typ), If (Max)
panel cutout shape
Square
Rating
0.025
