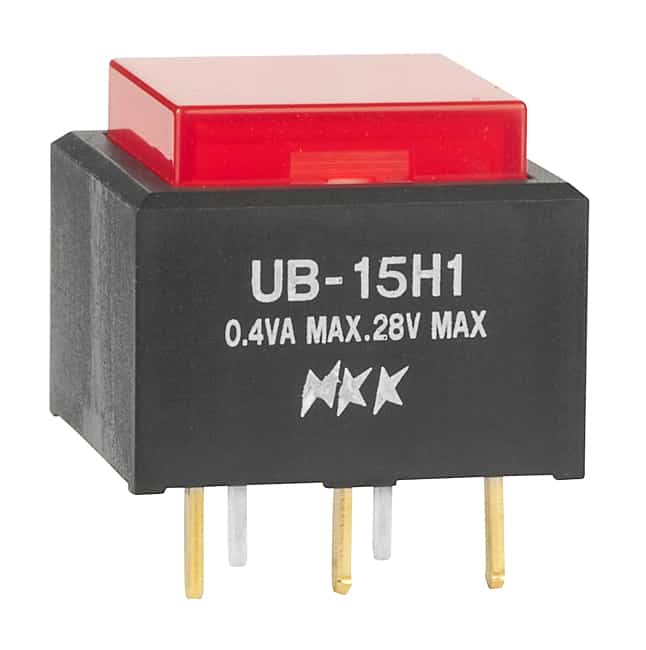

UB15SKG035C-CJ

Low Profile Pushbutton

UB Series
Low Profile Pushbutton

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
UB15SKG035C-CJ
Description
Low Profile Pushbutton
Name
Pushbutton
Series
UB
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Square, Button
Actuator Cap Color
Red
illumination color
LED, Red
illumination voltage
1.85 VDC
Mounting Type
Through Hole
Termination Style
PC Pin
Features
Epoxy Sealed Terminals
Rating
0.4
Illumination
Illuminated
