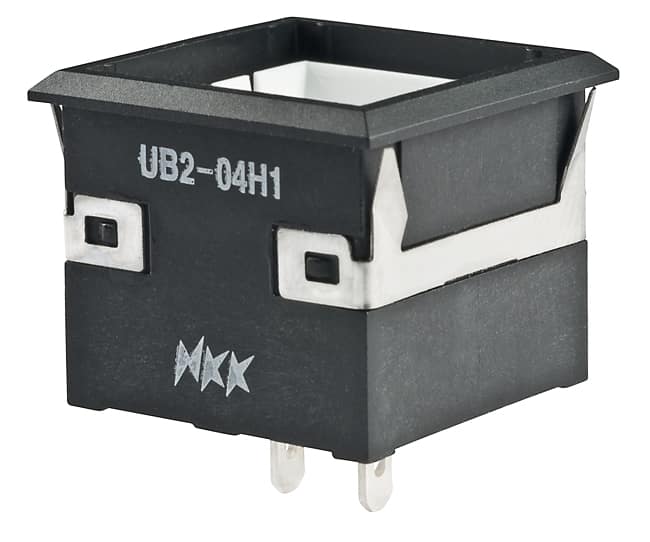

UB204KW035F

Low Profile Pushbutton

UB2 Series
Low Profile Pushbutton

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
UB204KW035F
Description
Low Profile Pushbutton
Series
UB2
Type
Indicators
Lamp Color
Green
Voltage Rating
2.1V
Current
25mA
Lens Style Size
Square with Flat Top, 15.00mm
panel cutout dimensions
0.69" x 0.69" (17.53mm x 17.53mm)
ratings
Vf (Typ), If (Max)
panel cutout shape
Square
Rating
0.025
