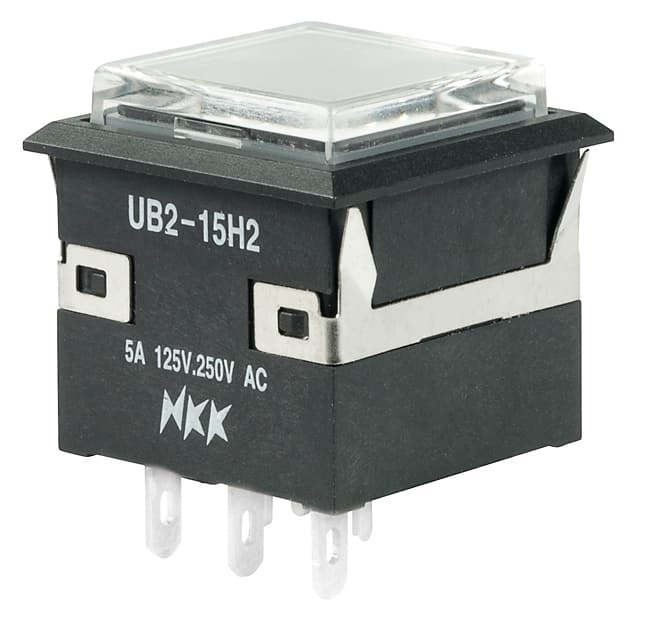

UB215KKW016CF-5J01

Low Profile Pushbuttons

UB2 Series
Low Profile Pushbuttons

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
UB215KKW016CF-5J01
Description
Low Profile Pushbuttons
Name
Pushbutton
Series
UB2
Poles
SPDT
Circuits
On-Mom
Current Rating
5A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Square, Button, Alternating Legend
Actuator Cap Color
Clear
illumination color
LED, Red/Green
illumination voltage
2.1, 3.5 VDC
Mounting Type
Panel Mount, Snap-In
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Square - 17.40mm_
Rating
5
Illumination
Illuminated
