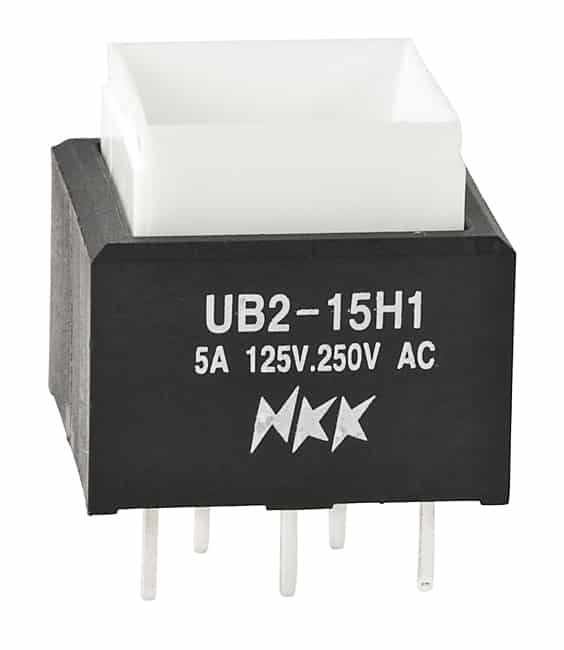

UB215SKW035D

Low Profile Pushbuttons

UB2 Series
Low Profile Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
UB215SKW035D
Description
Low Profile Pushbuttons
Name
Pushbutton
Series
UB2
Poles
SPDT
Circuits
On-Mom
Current Rating
5A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Plunger for Cap
illumination color
LED, Amber
illumination voltage
2 VDC
Mounting Type
Through Hole
Termination Style
PC Pin
Features
Epoxy Sealed Terminals
Rating
5
Illumination
Illuminated
