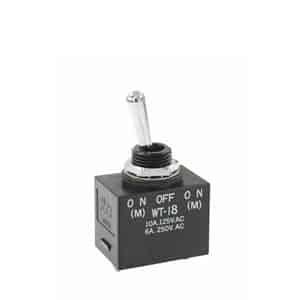

WT18S
Environmentally Sealed Toggles
WT Series
See PCN below for direct replacement or recommended alternate part number.
3D CAD Model
Download Specifications
Custom Assembly
Check Inventory
Sample Request Form
Environmental Compliance
Product Change Notices
Support Documentation
Standards & Approvals
Product Training Modules
Processing Data - PDF
Electrical Ratings - PDF
Lamps and LEDs - PDF
General Specifications
Part No.
WT18S
Description
Environmentally Sealed Toggles
Name
Toggle
Series
WT
Poles
SPDT
Circuits
Mom-Off-Mom
Current Rating
10A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
17.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Solder Lug
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
ingress protection
IP67
Features
Epoxy Sealed Terminals
Rating
10
Product Change Notices
No.
Category
Overview
Date Of Issue
PDF
