General Specifications
Part No.

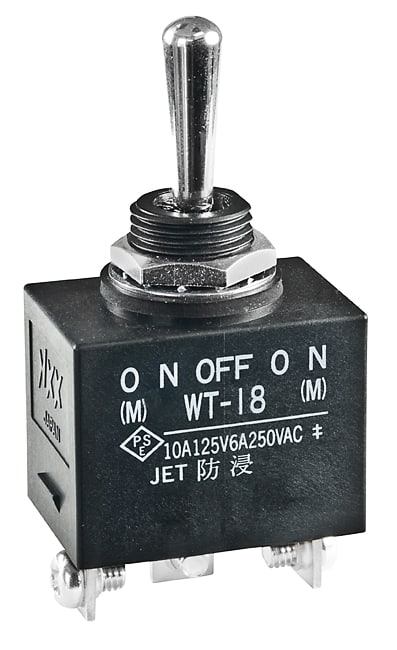

WT18T
Description
Environmentally Sealed Toggles
Name
Toggle
Series
WT
Poles
SPDT
Circuits
Mom-Off-Mom
Current Rating
10A (AC/DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Standard Round
actuator length
17.50mm
Illumination
Non-Illuminated
Mounting Type
Panel Mount
Termination Style
Screw Terminal
panel cutout dimensions
Circular - 12.50mm Dia
bushing thread
M12 x 1
ingress protection
IP67
Features
Epoxy Sealed Terminals
Rating
10
