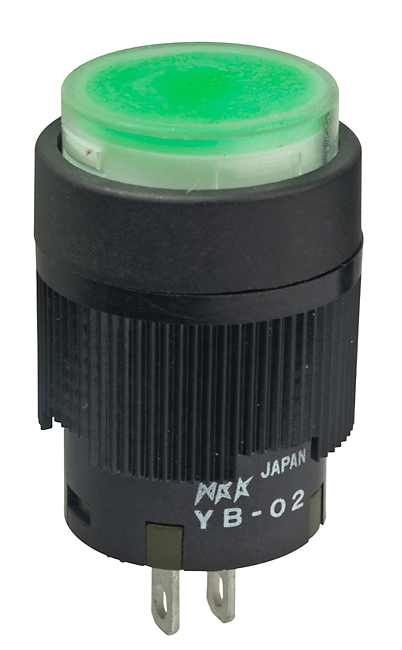

YB03WKW01-5F05-JF

Indicators

YB Series
Indicators

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
YB03WKW01-5F05-JF
Description
Indicators
Series
YB
Type
LED
Lamp Color
Green
lens color
Green
lens transparency
Clear
Voltage Rating
5V
Current
25mA
Lens Style Size
Rectangle with Flat Top, 21.00mm x 15.00
Mounting Type
Quick Connect - 0.110 (2.8mm)
panel cutout dimensions
0.63" (16.00mm)
ratings
AC
panel cutout shape
Round
Rating
0.025
