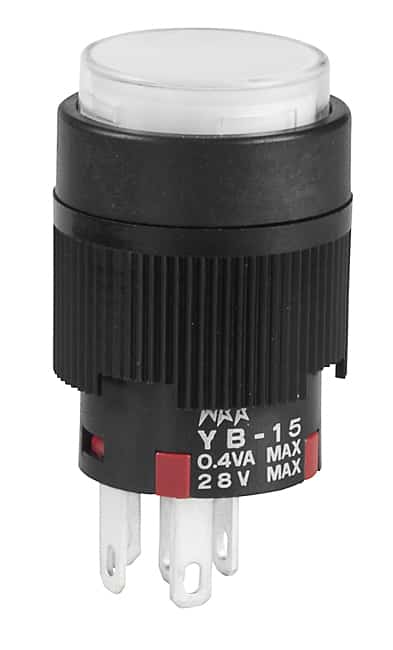

YB15CKG01-6B-JB

Short Body Pushbuttons

YB Series
Short Body Pushbuttons

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
YB15CKG01-6B-JB
Description
Short Body Pushbuttons
Name
Pushbutton
Series
YB
Poles
SPDT
Circuits
On-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Round, Button
Actuator Cap Color
Clear (White Filter/Diffuser)
illumination color
LED, White
illumination voltage
3.3 VDC
Mounting Type
Panel Mount, Front
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular - 16.00mm Dia
Rating
0.4
Illumination
Illuminated
