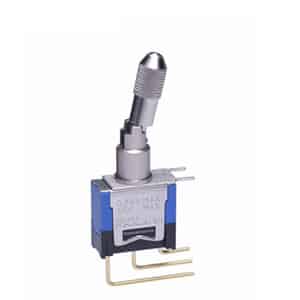

D22012LV

PCB Mount Miniature Toggles

D2 Series
PCB Mount Miniature Toggles

3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
D22012LV
Description
PCB Mount Miniature Toggles
Name
Toggle
Series
D2
Poles
SPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
48V
Rating (DC)
48V
Actuator Type
Locking Lever
actuator length
19.40mm
Illumination
Non-Illuminated
Mounting Type
Through Hole, Right Angle, Vertical
Termination Style
PC Pin
bushing thread
Unthreaded
Rating
0.4
