Part No.
EB2085G
Description

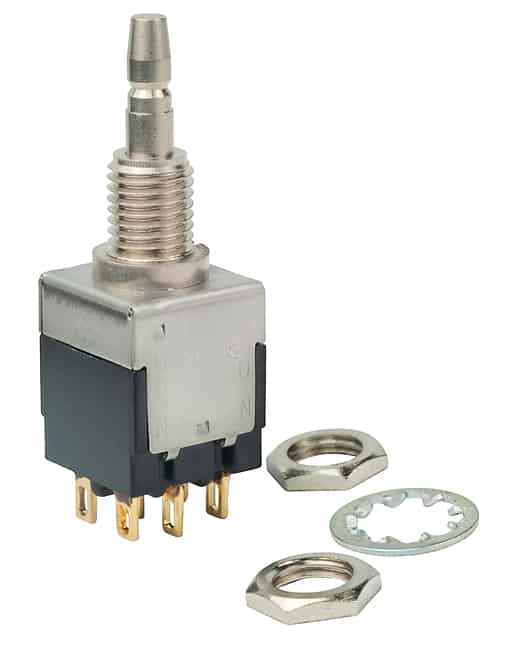

Light Touch Miniature Pushbuttons
Name
Pushbutton
Series
EB
Poles
DPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Plunger for Cap
Mounting Type
Panel Mount, Rear
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Circular - 6.35mm Dia
Rating
0.4
Illumination
Non-Illuminated
