M2012LL2G25

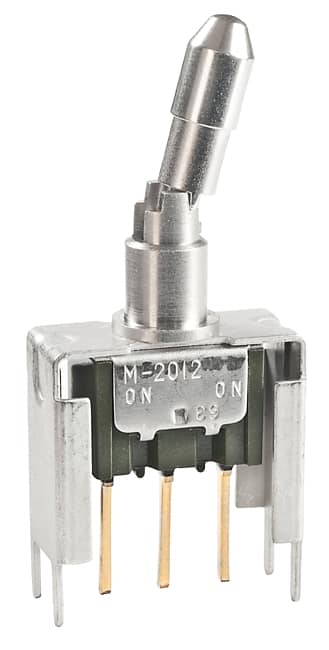

Bracket PC Mount Miniature Toggle

M Series
Bracket PC Mount Miniature Toggle

Not recommended for new designs.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
M2012LL2G25
Description
Bracket PC Mount Miniature Toggle
Name
Toggles
Series
M
Poles
SPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Locking Lever
actuator length
16.50mm
Illumination
Non-Illuminated
Mounting Type
Through Hole
Termination Style
PC Pin
bushing thread
Unthreaded
Features
Epoxy Sealed Terminals
Rating
0.4
