M2013TXW41/CUL-N988

SWITCH ROCKER SPDT 6A 125V

M Series
SWITCH ROCKER SPDT 6A 125V

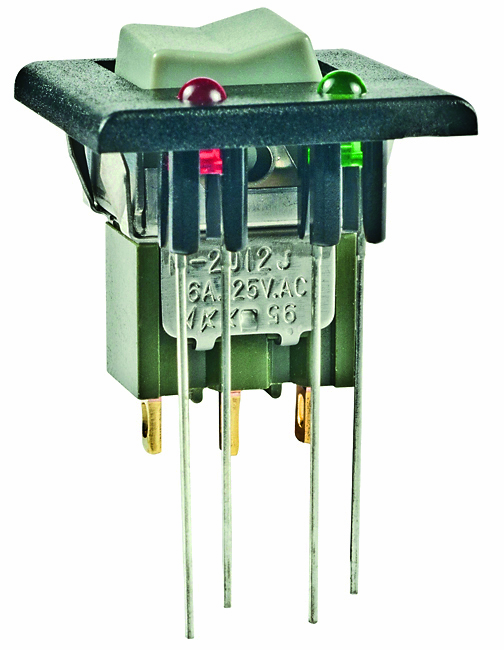

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
M2013TXW41/CUL-N988
Description
SWITCH ROCKER SPDT 6A 125V
Name
Rocker
Series
M
Status
Active
Poles
SPDT
Circuits
On-Off-On
Current Rating
6A (AC), 3A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Actuator Arm, Cap Required
illumination color
0
illumination voltage
0
Mounting Type
Panel Mount
Termination Style
PC Pin
Features
Epoxy Sealed Terminals
Illumination
Non-Illuminated
