MN12TNW01-EH

SWITCH ROCKER SPDT 6A 125V

M Series
SWITCH ROCKER SPDT 6A 125V

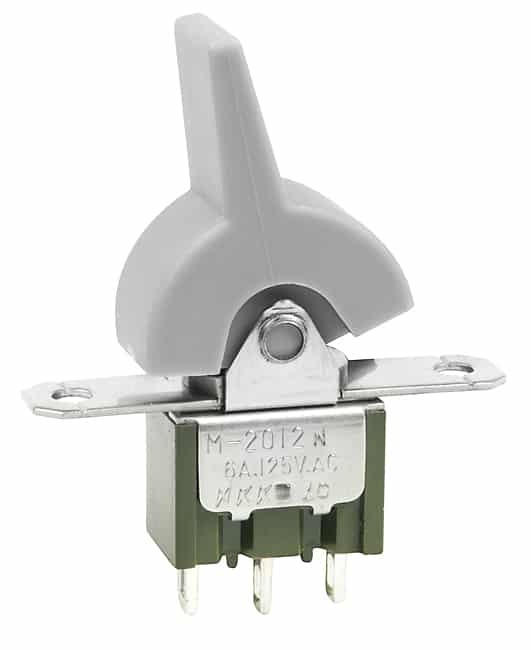

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MN12TNW01-EH
Description
SWITCH ROCKER SPDT 6A 125V
Name
Rocker
Series
M
Status
Active
Poles
SPDT
Circuits
On-On
Current Rating
6A (AC), 4A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Paddle
Actuator Cap Color
Gray
Actuator Marking
No Marking
illumination color
0
illumination voltage
0
Mounting Type
Panel Mount, Flange
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 17.80mm x 10.10mm
Rating
6
Illumination
Non-Illuminated
