MN13TJW03

Flat Frame Mount Miniature Rocker

MN Series
Flat Frame Mount Miniature Rocker

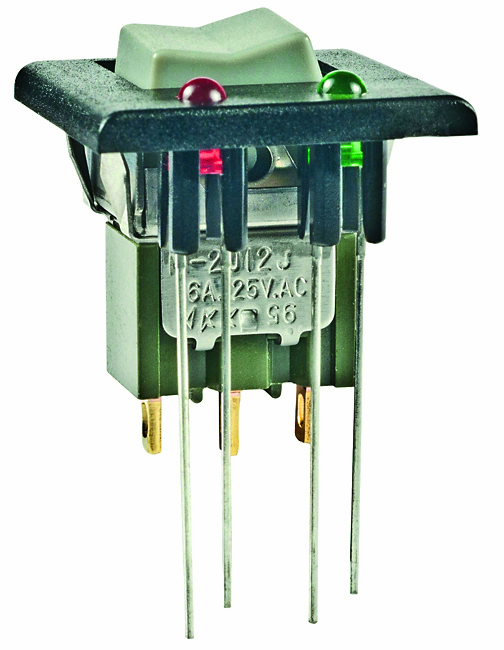

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MN13TJW03
Description
Flat Frame Mount Miniature Rocker
Name
Rockers
Series
MN
Status
Active
Poles
SPDT
Circuits
On-Off-On
Current Rating
6A (AC), 3A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Actuator Arm, Cap Required
illumination color
0
illumination voltage
0
Mounting Type
Panel Mount
Termination Style
Solder Lug
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 15.90mm x 12.50mm
Illumination
Non-Illuminated
