MN18TJG02

SWITCH ROCKER SPDT 0.4VA 28V

MN Series
SWITCH ROCKER SPDT 0.4VA 28V

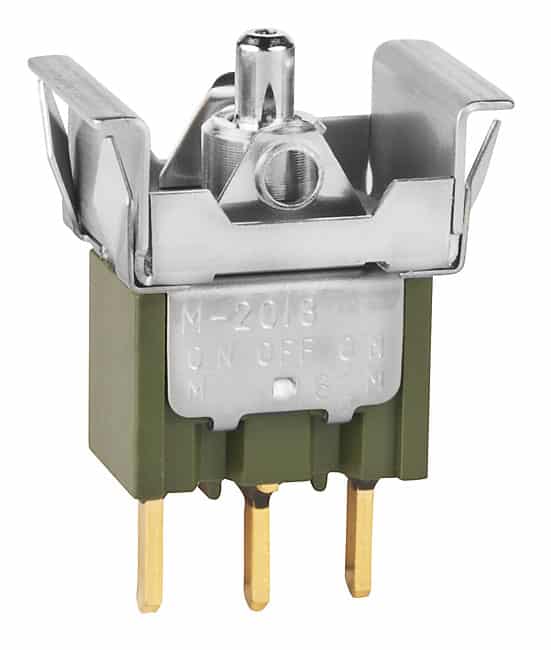

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MN18TJG02
Description
SWITCH ROCKER SPDT 0.4VA 28V
Name
Rocker
Series
MN
Status
Active
Poles
SPDT
Circuits
Mom-Off-Mom
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Actuator Arm, Cap Required
Actuator Marking
Varies by Cap
illumination color
0
illumination voltage
0
Mounting Type
Panel Mount, Snap-In
Termination Style
Quick Connect - 0.062" (1.5mm)
Features
Epoxy Sealed Terminals
panel cutout dimensions
Rectangular - 15.90mm x 12.50mm
Rating
0.4
Illumination
Non-Illuminated
