MN22TXG13-GA

SWITCH ROCKER DPDT 0.4VA 28V

M Series
SWITCH ROCKER DPDT 0.4VA 28V

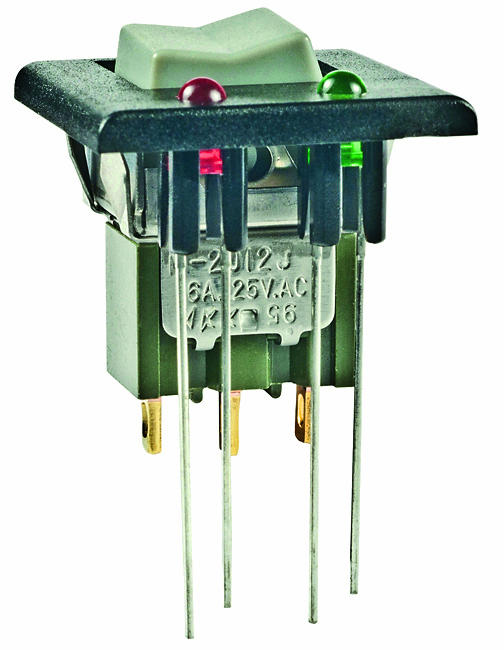

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MN22TXG13-GA
Description
SWITCH ROCKER DPDT 0.4VA 28V
Name
Rocker
Series
M
Status
Active
Poles
DPDT
Circuits
On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Actuator Arm, Cap Required
Actuator Cap Color
Black
illumination color
0
illumination voltage
0
Mounting Type
Through Hole
Termination Style
PC Pin
Features
Epoxy Sealed Terminals
Illumination
Non-Illuminated
