MN24TJG01

Snap-in Mount Miniature Rocker

MN Series
Snap-in Mount Miniature Rocker

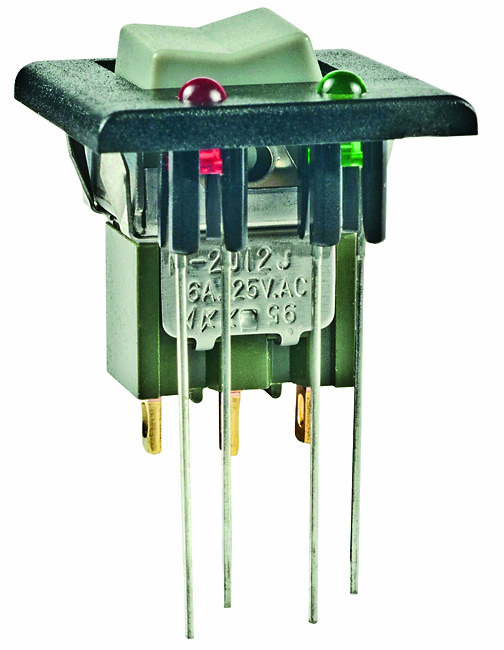

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices      Resources

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MN24TJG01
Description
Snap-in Mount Miniature Rocker
Name
Rockers
Series
MN
Status
Active
Poles
SP3T
Circuits
On-On-On
Current Rating
0.4VA (AC/DC)
Rating (AC)
28V
Rating (DC)
28V
Actuator Type
Actuator Arm, Cap Required
illumination color
0
illumination voltage
0
Mounting Type
Panel Mount
Termination Style
PC Pin
Features
Jumper needed to achieve triple throw
panel cutout dimensions
Rectangular - 15.90mm x 13.10mm
Illumination
Non-Illuminated
