MN24TNW03-DH

Snap-in Mount Miniature Rocker

M Series
Snap-in Mount Miniature Rocker

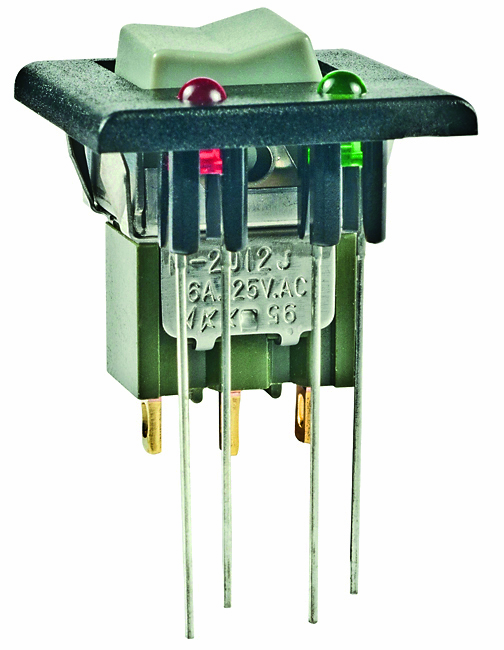

Image for reference only. Please see product specifications.
3D CAD Model Download Specifications Custom Assembly Check Inventory Sample Request Form Environmental Compliance Product Change Notices

Support Documentation

Standards & Approvals Product Training Modules Processing Data - PDF Electrical Ratings - PDF Lamps and LEDs - PDF
General Specifications
Part No.
MN24TNW03-DH
Description
Snap-in Mount Miniature Rocker
Name
Rockers
Series
M
Status
Active
Poles
SP3T
Circuits
On-On-On
Current Rating
3A (AC), 2A (DC)
Rating (AC)
125V
Rating (DC)
30V
Actuator Type
Actuator Arm, Cap Required
Actuator Cap Color
Gray
illumination color
0
illumination voltage
0
Mounting Type
Panel Mount, Flange
Termination Style
PC Pin
Features
Jumper needed to achieve triple throw
Illumination
Non-Illuminated
